The EMD 567 Engine in the 21st Century
For a number of years I have tried to guide my friends, the preservation community, through the various problems and issues involved in restoring elderly EMD 567 series diesel engines for occasional operation. This article is a summary of what answers I have been able to find on issues of parts availability and the most common questions involving the viability of operating the various models of the 567 engine.
Efforts to restore and operate ancient diesels are important and commendable, but trying to resurrect a diesel engine that is unsupportable can generate cost overruns that can easily sink a restoration project. This may seem strange at first, as we tend to take the EMD 567 series diesel prime movers for granted, there were so many of them produced and they were used in so many locomotive models. There is considerable parts interchangeability within the engine series, but there were also a steady flow of design improvements that made some of the components used in the older models obsolete. As the remaining population of early models of the engine has diminished, this has left some critical gaps in the parts availability.
But the 567 series diesels were mass-produced, right? Electro-Motive and the aftermarket manufacturers must have built parts for these engines by the thousands! Yes that is true, but in recent years they have scrapped parts for obsolete diesels by the thousands too. With the high cost of warehousing and the inventory taxes in many states, diesel engine manufacturers cannot afford to keep infrequently selling parts for 60 year old engines on the shelf. It generally requires four or five sales turns on inventory a year to justify stocking an item nowadays.
If you cannot obtain an item, what about reverse engineering it and building the part yourself? Before you go down this road you need to take a very critical look at where you are headed. Building parts locally for a diesel engine is not at all like building parts locally for a steam locomotive. Since nearly every order of steam locomotives was a custom job, the number of "standardized" components was rather small. An order of steam locomotives was usually delivered to the railroad with a supporting library of manufacturing drawings that would fill a wheelbarrow. The design of steam locomotive parts was based around the expected need to be able to do some limited local support rather than waiting weeks or months for the original manufacturer to cast, machine, and deliver a replacement part peculiar to just one class of locomotives on one railroad.
Diesels were set up for mass production using very specialized machine tools designed for very specific manufacturing operations. These are usually not the conventional machine shop "general purpose" type tools, and when a part is discontinued the specialized tools and fixtures are usually not adaptable for other purposes and get scrapped soon afterwards. In addition, manufacturing many of the components for diesel engines requires great attention to material composition, casting procedures, heat treatment, and surface finish considerations. That type of metallurgical and machining support is very difficult to find nowadays in local shops for the extremely small production runs involved in restoration projects.
Consequently with the earliest EMD 567 engines approaching 70 years old, we have reached the point where some of them are joining the Winton 201A in being economically "unsupportable". This article is an effort to explain what the potential problem areas are for each model of 567 engine, so that anyone planning to operate these machines will have a better idea what they are up against.
Common Applications of these Engines (Partial List)

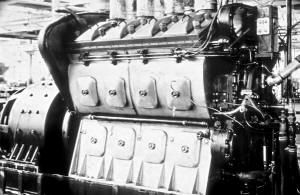

The 567 "U" Deck and "V" Deck Models
Both of these engine models present similar problems in planning a restoration. They both used timing gear train arrangements employing parts that have been out of production for many years. The 567 "U" deck uses an unusual camshaft bearing arrangement with lower shells only, these have no tangs, and have been out of production for several decades. Consequently even though some other parts are still available that can be used in these engines, any failure in the timing gear train is likely to render the engine permanently inoperable and unrepairable.
There are additional issues pertaining to the cylinder "power assembly" components that are used in these crankcases. These issues are in common with 567A and 567B engines and will be covered in the section on those engine models. It should also be noted that crankshafts for the six cylinder versions of these engines (and all other 567 models) are very rare and difficult to obtain now, but on the other hand the six cylinder 567 engines seldom fail crankshafts.
I tend to take the same viewpoint on operating a 567U and 567V engines that I do with a Winton 201A, which is that these engines are so rare now that the risk of damaging one by having a major mechanical failure makes it questionable whether you should risk operating it at all. They have reached the point where they have a higher value as a display than as an operating diesel engine. While it might be quite tempting to try to resurrect an otherwise serviceable locomotive that has one of these engines (particularly a nice switcher that could be very useful), is it worth the financial risk to do a bearing change and cylinder overhaul and then have the engine taken out a short time later by a gear train failure that cannot be repaired for lack of any parts? If operating the locomotive is the most important factor, perhaps installing a later model engine is the more practical approach, and put the 567U or 567V engine on display.
I fully understand that a prime mover change is a very unpopular alternative with groups concerned with maintaining total authenticity of their equipment. Over the years I have occasionally received some sharp criticism when my advice to consider installing a later model engine was not what the people doing the project wanted to hear. Just be aware that trying to operate an elderly diesel engine without proper parts support has the potential to soak up enough money to build a brand new structure to house the equipment.

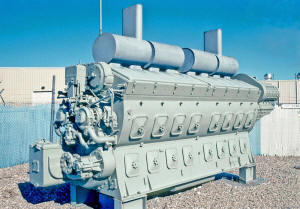

The 567A and 567B Models
The most significant problem in trying to restore a 567A or 567B engine for operation is the diminishing availability of the original style water deck cylinder liners. EMD dropped these from production in the late 1970s, several aftermarket suppliers produced them afterwards, but they are becoming increasingly difficult and expensive to obtain. The original style eyelet type connecting rods and the matching piston carrier and piston have been out of production at EMD for many years too, but 567C pistons, piston carriers, and trunion type rods can be used as a replacement. The 567A and 567B type cylinder heads were also discontinued, but one aftermarket supplier was offering a very innovative service to remanufacture 645 engine cylinder heads to fit the early 567 engines.
When operated infrequently these engines tend to have problems with water leaks around the cylinder liner and cylinder head seals. These leaks frequently result in water contamination of the lubricating oil, which can lead to subsequent bearing failures. The rust and corrosion resulting from the leaks often has damaged the crankcase sheets that the water seals fit against, requiring additional repairs. This was a significant problem in operation of these engine models by the railroads, and is even more of a problem in museum or excursion operations.
While the 567A and 567B can be operated successfully if you have an adequate supply of the proper cylinder liners and cylinder heads, the water leak problems and parts support are major concerns in the long run. The 567AC and 567BC engines we will discuss next are much easier to support and since they are visually almost identical to the 567A and 567B, they may be a much more practical alternative in the long run.

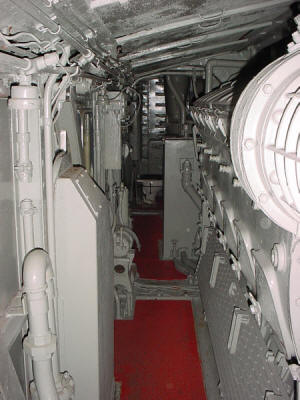

The 567AC and 567BC Engines
The modified AC and BC engines use 567C cylinder liners rather than the earlier style components. From a standpoint of restoration for limited operation of a locomotive originally built with a 567A or 567B engine, having a 567AC or 567BC engine installed is very highly desirable if one can be located that is in good condition.
With some additional modifications the 567AC and 567BC engines can use 645 engine cylinder liners and reciprocating components. This requires changing the camshaft counterweights as the piston weight is different and has to be correctly counterbalanced. The horsepower rating of the engine is not increased as a result of this type of upgrade. If the engine is upgraded to use 645 power assembly parts, the limiting factor for continued operation of 567AC and 567BC engines in the future is the availability of the correct type of cylinder heads and the corresponding gasket kits.

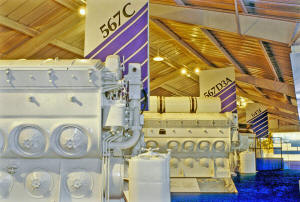

The 567C Engines
The 567 D2, D3, and D3A Engines (all 16-cylinder)
If you intend to operate a locomotive with a 567 turbocharged engine and need to change the turbocharger, it is very advisable to obtain some technical support from the EMD distributor. There are a number of system details of the 567 turbocharger that are different from the much more common 645 variety. The 567 turbos are particularly susceptible to damage due to lack of lubrication on startup and any time one is changed the soak back system must be carefully inspected and the engine thoroughly pre-lubed prior to starting. Failure to do so can result in critical engine damage or even injury to personnel. Proper pre-lubrication prior to starting is so critical on 567 turbocharged engines that it might be worth considering the permanent onboard installation of an engine (not just the turbo) pre-lube system to a unit that will be operated infrequently.
The 567D series turbocharged engines can use 645 series cylinder power assemblies with appropriate changes to the camshaft counterweights as mentioned earlier. Many of the railroad that were operating these locomotives made this modification in order to standardize on 645 parts and cut their shelf inventory requirements. Most of the other parts for the 567 turbocharged engines are still available or suitable substitutions can be made with 645 components. Consequently it is should be viable to operate 567D series turbo engines for some time into the future, provided you can support the very hefty expense of maintaining a turbocharger.
EMD 567 engines can use cylinder power assemblies with cast iron liners or chrome bore liners. In either case the appropriate piston ring set must be used (they are different materials) to avoid oil control problems and scuffing of the liner and rings. If you are planning on using chrome bore liners you should consult with other operators who have used them regarding oil consumption and oil control in light load operations.
If a 567 engine has been modified to use 645 series cylinder power assembly components, then laser hardened cylinder liners become another option. Be aware that in addition to being more expensive, laser hardened liners tend to take longer to seat the rings and can run into oil control problems in extended light load operation. For most museum and limited excursion service applications, plain cast iron liners are the best choice.
If you are changing power assemblies, be aware that 567C and 567D series engines have no built in siphons to drain the water manifold in the top deck when you dump the water in the engine. They require a special water outlet on the rear cylinder head in the right bank and the front cylinder head in the left bank. If you fail to install them in the proper location, and have to dump the coolant in freezing weather, you end up with the crankcase being irreparably damaged if the upper water manifold freezes.
The fuel injectors for 567 series engines are generally still available as rebuilds, although the price of rebuilding may be higher if you are turning in some of the very old types of 567 injectors as cores. It an engine has been upgraded to use 645 series cylinder components, the fuel injectors are common and readily available.
Suitable parts for early model EMD engines are also available from a variety of aftermarket suppliers who advertise in the railroad trade press. Be aware that these suppliers are faced with similar production and inventory considerations as those that cause EMD to cease production of some items. Generally within a few years after EMD stops building an item, the aftermarket parts builders drop it too.
Spare parts are another consideration. Many of the bearings, crankshafts, camshafts, pumps, and other auxiliary items applied to the later 567 series models are shared with variations of the 645 engines and consequently should be available for some time. The really critical items are the availability and cost of cylinder power assemblies and engine gear train components. If the locomotive will be critical to your operations, I would recommend having reasonably quick access to a set of cylinder power assemblies and a full set of connecting rod bearings, as one overheating event can cost you a lot of cylinder heads and maybe a few cylinder liners too. Having a set of spare injectors on hand is also a good idea, the presence of just a little water in the fuel can wipe a set of them out in one shot.
It is often worthwhile to set up a lube oil monitoring system , it is a relatively inexpensive way to protect the time and money you have invested in a rebuilt engine. You might also consider sampling your fuel to detect algae or other contamination.
I hope that this has provided some useful information. It is the same advice that I have given to a number of friends over the years, this time it is presented as an article instead. Some of this is admittedly a matter of judgment and, to use a common disclaimer, it is "offered without warranty or guarantee of any kind". I am just trying to make more of the preservation community aware of the potential problems they can encounter in operating these elderly diesel engines. I do not sell parts or do any consulting work, and I have no economic stake in any purchasing decisions your organizations might make. I have several dozen locomotives to take care of, and it is a full time job. So proceed with caution as an elderly diesel engine has the potential to burn up a lot more than just diesel fuel if you don't do a thorough job of planning and funding your repairs.
* * * * * * * * * *
