 Post subject: Re: Steam (returning/being restored/being rebuilt) in 2024
PostPosted: Thu Jun 13, 2024 6:47 pm

Joined: Wed Jun 29, 2016 11:58 am
Posts: 276
Kelly Anderson wrote:
M Austin wrote:
Wonder where the condenser for the turbines will be....
In the track pans...


Most folks here know that I retired from the MOW Side of Amtrak's Northeast Corridor. One of the major track groups was the Undercutter. You really don't want to know how much aggravation was involved with running into abandoned, under track level infrastructure for track pans for steam engines with the Undercutter's chain.

Newly created not nice words were spoken.

Brian Helfrich


Offline
 Profile

 Post subject: Re: Steam (returning/being restored/being rebuilt) in 2024
PostPosted: Thu Jun 13, 2024 10:01 pm

Joined: Thu May 24, 2012 1:37 pm
Posts: 2335
And I thought new horizons in bad language were caused by those awful little granite 'center posts' on the NEC north of New Haven!

_________________
R.M.Ellsworth


Offline
 Profile

 Post subject: Re: Steam (returning/being restored/being rebuilt) in 2024
PostPosted: Fri Jun 14, 2024 7:31 am

Joined: Sun Aug 22, 2004 8:31 am
Posts: 1319
Location: South Carolina
Overmod wrote:
Be interesting to see just how 'modular' the power generation is, with 20 "boilers" and 4 turbines. Perhaps someone can look over the Steamology IP and see what degree of superheat is to be maintained at the turbine inlet.


Interesting about the use of 4 turbines. Someone sent me a proposal outline for a modern steam turbine electric ~20 years ago and a central feature of it was using 4 steam turbines of various sizes. Most of us know that steam turbine efficiency falls off rapidly when they aren’t operated at their design speed, so slowing a turbine down, deliberately to reduce its power output or speed or incidentally because of a grade, results in a major loss of efficiency. This was a significant problem with all turbine powered locomotives.

The idea in using 4 turbines in the earlier project is that each turbine would power its own generator and would either be shut off, or operated at its design speed. By operating various combinations of the 4 turbines, you could get 8 power settings corresponding to the 8 notches of a diesel electric throttle, while maintaining maximum efficiency.

It’ll be interesting to see if this new design uses the same approach.

_________________
Hugh Odom
The Ultimate Steam Page
http://www.trainweb.org/tusp


Offline
 Profile

 Post subject: Re: Steam (returning/being restored/being rebuilt) in 2024
PostPosted: Fri Jun 14, 2024 11:41 am

Joined: Tue Jul 14, 2020 12:17 pm
Posts: 95
choodude wrote:
Kelly Anderson wrote:
M Austin wrote:
Wonder where the condenser for the turbines will be....
In the track pans...


Most folks here know that I retired from the MOW Side of Amtrak's Northeast Corridor. One of the major track groups was the Undercutter. You really don't want to know how much aggravation was involved with running into abandoned, under track level infrastructure for track pans for steam engines with the Undercutter's chain.

Newly created not nice words were spoken.

Brian Helfrich


The Undercutter sounds like a Wrestling finishing move.


Offline
 Profile

 Post subject: Re: Steam (returning/being restored/being rebuilt) in 2024
PostPosted: Fri Jun 14, 2024 11:42 am

Joined: Tue Jul 14, 2020 12:17 pm
Posts: 95
whodom wrote:
Overmod wrote:
Be interesting to see just how 'modular' the power generation is, with 20 "boilers" and 4 turbines. Perhaps someone can look over the Steamology IP and see what degree of superheat is to be maintained at the turbine inlet.


Interesting about the use of 4 turbines. Someone sent me a proposal outline for a modern steam turbine electric ~20 years ago and a central feature of it was using 4 steam turbines of various sizes. Most of us know that steam turbine efficiency falls off rapidly when they aren’t operated at their design speed, so slowing a turbine down, deliberately to reduce its power output or speed or incidentally because of a grade, results in a major loss of efficiency. This was a significant problem with all turbine powered locomotives.

The idea in using 4 turbines in the earlier project is that each turbine would power its own generator and would either be shut off, or operated at its design speed. By operating various combinations of the 4 turbines, you could get 8 power settings corresponding to the 8 notches of a diesel electric throttle, while maintaining maximum efficiency.

It’ll be interesting to see if this new design uses the same approach.


So, a Steam Turbine Genset?


Offline
 Profile

 Post subject: Re: Steam (returning/being restored/being rebuilt) in 2024
PostPosted: Fri Jun 14, 2024 1:09 pm

Joined: Sun Aug 22, 2004 8:31 am
Posts: 1319
Location: South Carolina
scratchyX1 wrote:
So, a Steam Turbine Genset?


Pretty much.

_________________
Hugh Odom
The Ultimate Steam Page
http://www.trainweb.org/tusp


Offline
 Profile

 Post subject: Re: Steam (returning/being restored/being rebuilt) in 2024
PostPosted: Fri Jun 14, 2024 4:00 pm

Joined: Fri Mar 26, 2010 11:43 am
Posts: 758
whodom wrote:

The idea in using 4 turbines in the earlier project is that each turbine would power its own generator and would either be shut off, or operated at its design speed. By operating various combinations of the 4 turbines, you could get 8 power settings corresponding to the 8 notches of a diesel electric throttle, while maintaining maximum efficiency.

It’ll be interesting to see if this new design uses the same approach.


I wonder if it was really 3 traction power turbines and one "system power" turbine that ran all the time.

3 turbines is all you need to get 8 steps of power from 0 to 100%. Or use the base power turbine for step 1.

Hair brained schemes that were never built for $0, Ryan.


Offline
 Profile

 Post subject: Re: Steam (returning/being restored/being rebuilt) in 2024
PostPosted: Sat Jun 15, 2024 1:14 am

Joined: Sun Feb 24, 2013 1:09 am
Posts: 152
Location: St. Louis, MO
So, here is an update on one of the steam locomotives being rebuilt.

- Arcade & Attica 2-8-0 #18 now has its boiler and cab back on the frame, and it was under steam June 11th & 12th (with only a few setbacks). The A&A is hoping to have #18 running the rails towards the end of July. Good job and good luck, A&A! Here's hoping that #18 is running again before the end of the year.


Also, here are 3 more steam locomotives being rebuilt (2 that I missed earlier, and 1 that was just announced).

- Sierra Railway {Prescott & Arizona Central} W.N. Kelley class 4-6-0 #3 is undergoing her 1472 SDI. Hopefully, the "Movie Star" will return to pulling passengers again soon.

- Dierks Lumber & Coal {Texas, Oklahoma & Eastern} 203 class 2-6-2 #207 is having funds raised for a restoration to operation by the Oklahoma Heritage Railway Association. Hopefully, we will see #207 pulling passengers again in the not-so-distant future. https://www.gofundme.com/f/help-restore ... e=facebook

- McCloud River 24 class 2-6-2 #25 appears to be nearing the end of her 1472 SDI. It will be very nice to see #25 running down the rails again soon.

_________________
Chris H.

- Diesels are boxcars with an engine, but steam is an iron horse.


Offline
 Profile

 Post subject: Re: Steam (returning/being restored/being rebuilt) in 2024
PostPosted: Sat Jun 15, 2024 1:10 pm

Joined: Fri Feb 13, 2015 2:48 pm
Posts: 186
Cedar Point & Lake Erie has just sent the #1 G. A. Boeckling to FMW for rebuild. https://www.youtube.com/watch?v=pZibI8BkCCU


Offline
 Profile

 Post subject: Re: Steam (returning/being restored/being rebuilt) in 2024
PostPosted: Sat Jun 15, 2024 1:12 pm

Joined: Wed Jan 20, 2016 1:15 pm
Posts: 1613
Jennie K wrote:
Cedar Point & Lake Erie has just sent the #1 G. A. Boeckling to FMW for rebuild. https://www.youtube.com/watch?v=pZibI8BkCCU


That’s awesome! I need to get back up there - do they run 2 trains a day?


Offline
 Profile

 Post subject: Re: Steam (returning/being restored/being rebuilt) in 2024
PostPosted: Sun Jun 16, 2024 2:07 am

Joined: Sat Jul 18, 2015 7:38 pm
Posts: 9
Regarding the Poulson #2, now in Portland, OR. at the Oregon Rail Heritage Center.

There is lots of work being done on the running gear ... the previous posts are mostly correct; the boiler work (1472) was completed last fall.

Long version of the story -- the owner is not a person for half measures. When issues became apparent during last year's Christmas trains, and after investigation, he decided to proceed with a pretty complete rebuild of the cylinders, bearings, driving wheels and the like. The work is proceeding nicely as far as I can tell. (I am a passenger car guy, not so much locomotives.)

I took a couple of pictures in between running trains at the Center today ...

1: the fireman's side over the pit. There is a lot of gear removed for servicing.

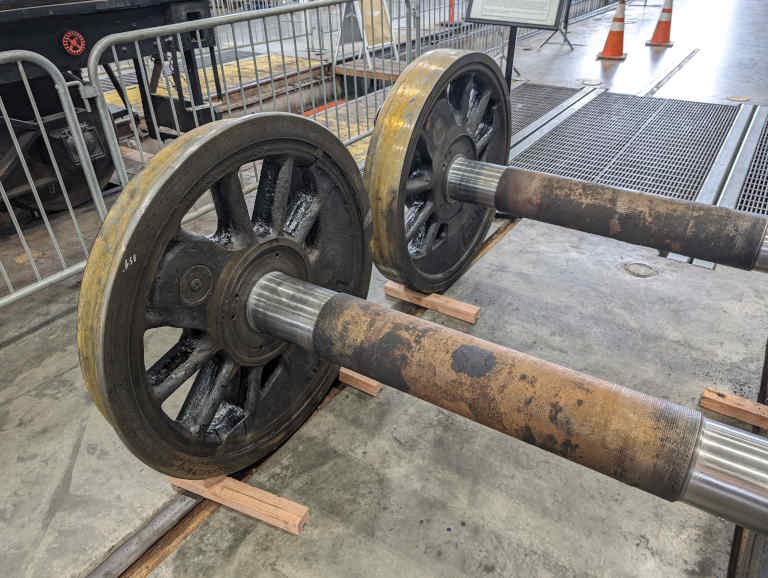

2: Two of the driving axles are getting some love. Note that what I'm going to call the side bearings, which are recessed into the cast wheel, have been removed (they were badly scored) and new ones are being fabricated in the machine shop.

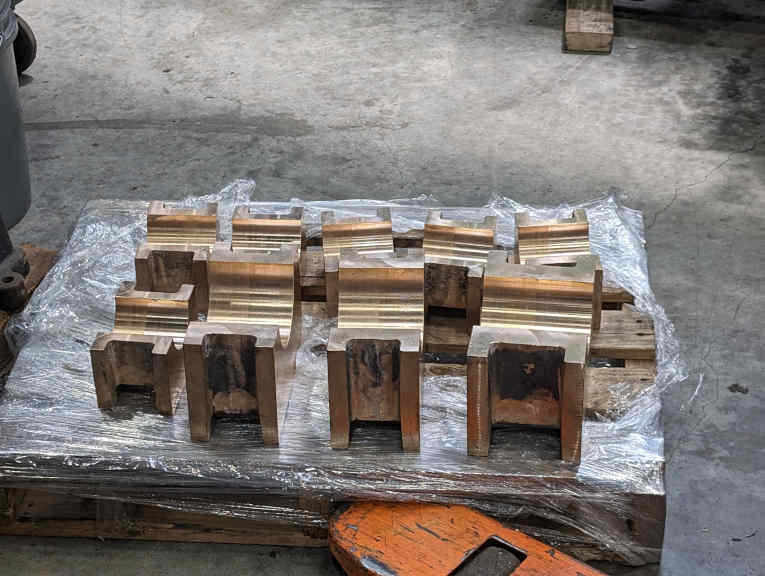

3: Over in the shop, on a pallet, are newly cast brasses. Our people built the patterns and they were cast in a couple of different foundries within driving distance.

I'm not in the loop for all the specific plans -- but ... once the #2 is done she will pull a few of our regular local excursions. At that point the Mt. Emily Shay will come into the shop and her 1472 work will begin. We'll obviously do anything else that needs done on the Shay as well. Once the Shay is up and running the #2 will travel down to the Albany & Eastern RR in Lebanon Oregon where she and her cousin Santa Maria Valley 205 will steam up a storm. All the timing is, of course, "Railroad timing".

-Enjoy

-David


Attachments:
File comment: New brass castings
P2 03.jpg
P2 03.jpg [ 52.88 KiB | Viewed 3203 times ]
File comment: Two driving wheels
P2 02.jpg
P2 02.jpg [ 55.68 KiB | Viewed 3203 times ]
File comment: Parts removed for service
P2 01.jpg
P2 01.jpg [ 58.02 KiB | Viewed 3203 times ]

_________________
David Cautley
Small Fortune Railcar LLC
Offline
 Profile

 Post subject: Re: Steam (returning/being restored/being rebuilt) in 2024
PostPosted: Sun Jun 16, 2024 5:16 pm

Joined: Wed Aug 31, 2022 8:56 am
Posts: 74
Attachment:
BSVY 8419 06-15-24.jpg
BSVY 8419 06-15-24.jpg [ 112.27 KiB | Viewed 2966 times ]

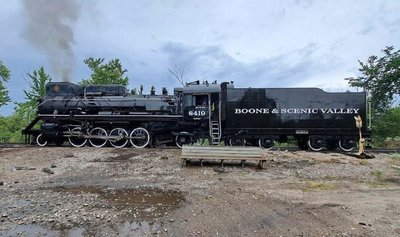

With a new look, BSVY's Chinese JS #8419 is shown at Boone on June 15 prior to coupling onto its first train of the 2024 season.


Offline
 Profile

 Post subject: Re: Steam (returning/being restored/being rebuilt) in 2024
PostPosted: Sun Jun 16, 2024 8:45 pm

Joined: Fri Feb 13, 2015 2:48 pm
Posts: 186
Crescent-Zephyr wrote:
Jennie K wrote:
Cedar Point & Lake Erie has just sent the #1 G. A. Boeckling to FMW for rebuild. https://www.youtube.com/watch?v=pZibI8BkCCU


That’s awesome! I need to get back up there - do they run 2 trains a day?


Not normally anymore. With multiple ways of getting to the Frontiertown end of the park the only time they schedule two trains on is on the really busy holidays. I can remember when they ran three trains starting in mid June through mid August.


Offline
 Profile

 Post subject: Re: Steam (returning/being restored/being rebuilt) in 2024
PostPosted: Thu Jun 27, 2024 8:38 am

Joined: Fri May 17, 2024 6:27 am
Posts: 2
Are there any updates on Canadian National 5288?


Offline
 Profile

 Post subject: Re: Steam (returning/being restored/being rebuilt) in 2024
PostPosted: Thu Jun 27, 2024 8:42 am

Joined: Thu Feb 02, 2023 1:55 pm
Posts: 49
Ya doesn't colebrookdale now have 3x steamers ?
I haven't seen much posted about their restoration efforts. Restoring 3 at once is a pretty big bite to chew.


Offline
