Tim Barger
 Post subject: Updates from the Strasburg Rail Road Shops
PostPosted: Fri Jun 20, 2025 9:27 am

Joined: Mon Oct 07, 2024 9:13 am
Posts: 16
Location: Strasburg/Paradise
Happy Friday to all of you!

Our shops have been kept busy over the last six months and we've had some new arrivals recently too.

Enjoy the updates!


Attachments:

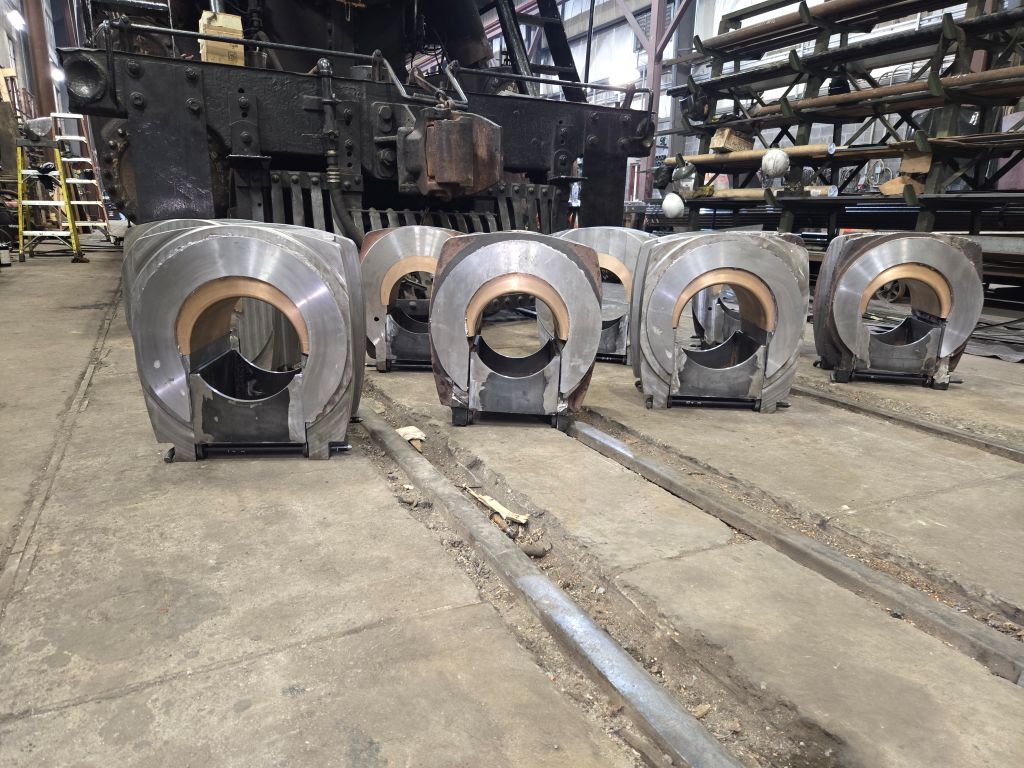

File comment: Finished driving boxes for Southern 722 before they were shipped back to GSMR. The setting dates the picture well, note 90's pilot in the background.
20250204_113831.jpg [ 168.4 KiB | Viewed 2432 times ]

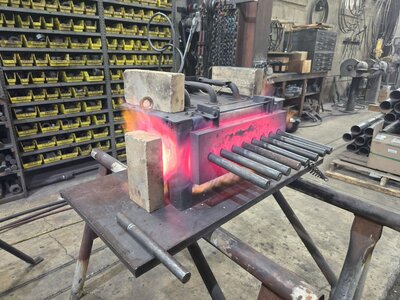

File comment: Staybolts heating up for the heads to be forged.
20250403_140439.jpg [ 170.98 KiB | Viewed 2432 times ]

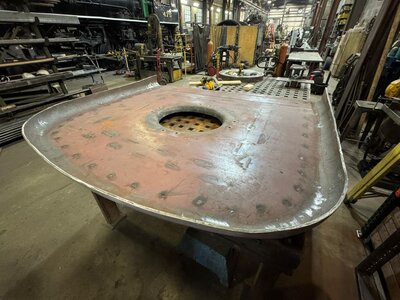

File comment: Southern 722's door sheet is shown here, before being fitted to the firebox sheets.
IMG_1053.jpg [ 148.33 KiB | Viewed 2432 times ]

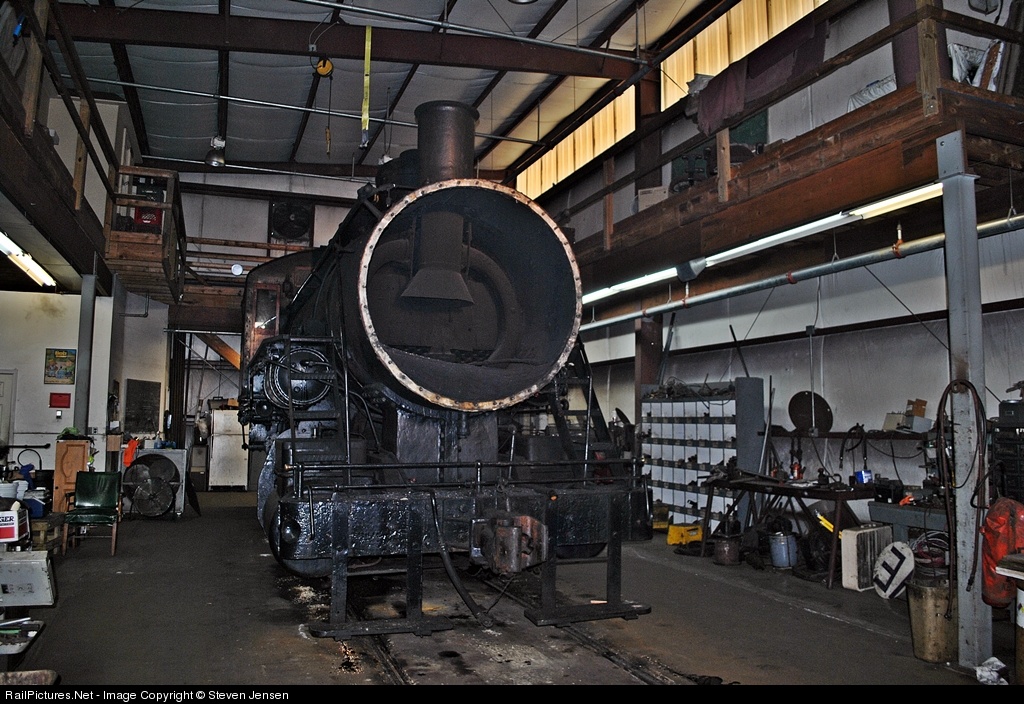

File comment: Northern Central's York 17 is also here for a 1472 SDI with hopes for completion this fall.
IMG_1071.jpg [ 187.23 KiB | Viewed 2432 times ]
File comment: Starting at Esbenshade Crossing and working roughly a half a mile east our roadway department oversaw the replacement of ties, tamping and re-ballasting of track.
IMG_1119.jpg [ 257.15 KiB | Viewed 2432 times ]
File comment: Part of the work done around Esbenshade with the tie replacement, naturally, was the re-paving of the grade crossing after the trackwork was completed.
IMG_1142.jpg [ 178.24 KiB | Viewed 2432 times ]

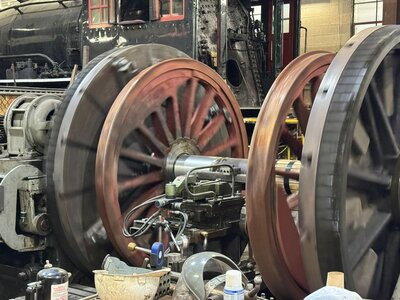

File comment: As many folks know late in 2024 the Railroaders Memorial Museum of Altoona asked us to come on board with FMW solutions to help with 1361's restoration. Here we see one of the driver sets having the journals machined. Next up is the driving boxes.
IMG_1320.jpg [ 153.27 KiB | Viewed 2432 times ]

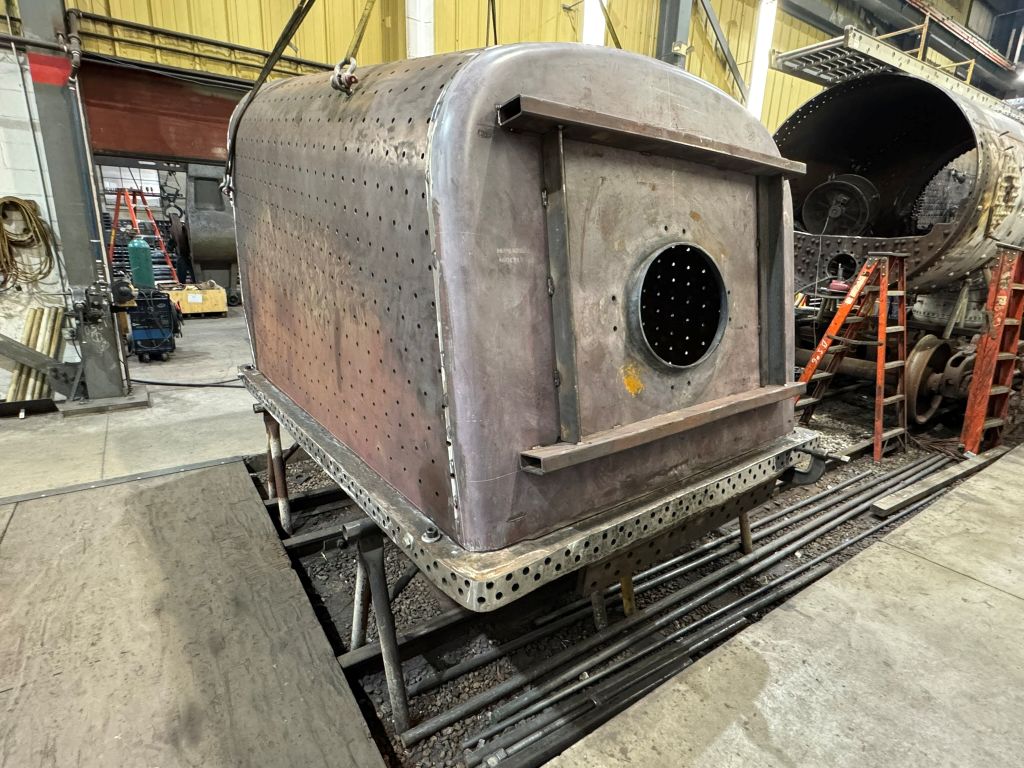

File comment: Here is an upright view of 722's firebox, door sheet and rear flue sheet tack welded together. Shortly after this the assembly will be test fitted for alignment and drilling for the rivets will take place.
IMG_1334.jpg [ 175.82 KiB | Viewed 2432 times ]

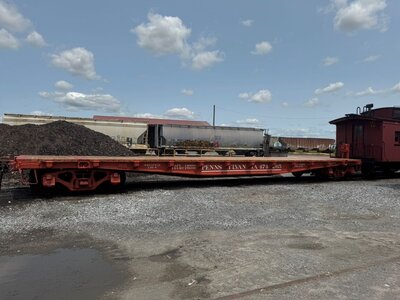

File comment: Restoration of our PRR F30a flat car was completed as well. Pending FRA approval we hope to enter this car into MoW service and make it available for photo charters as well.
IMG_1343.jpg [ 136.81 KiB | Viewed 2432 times ]

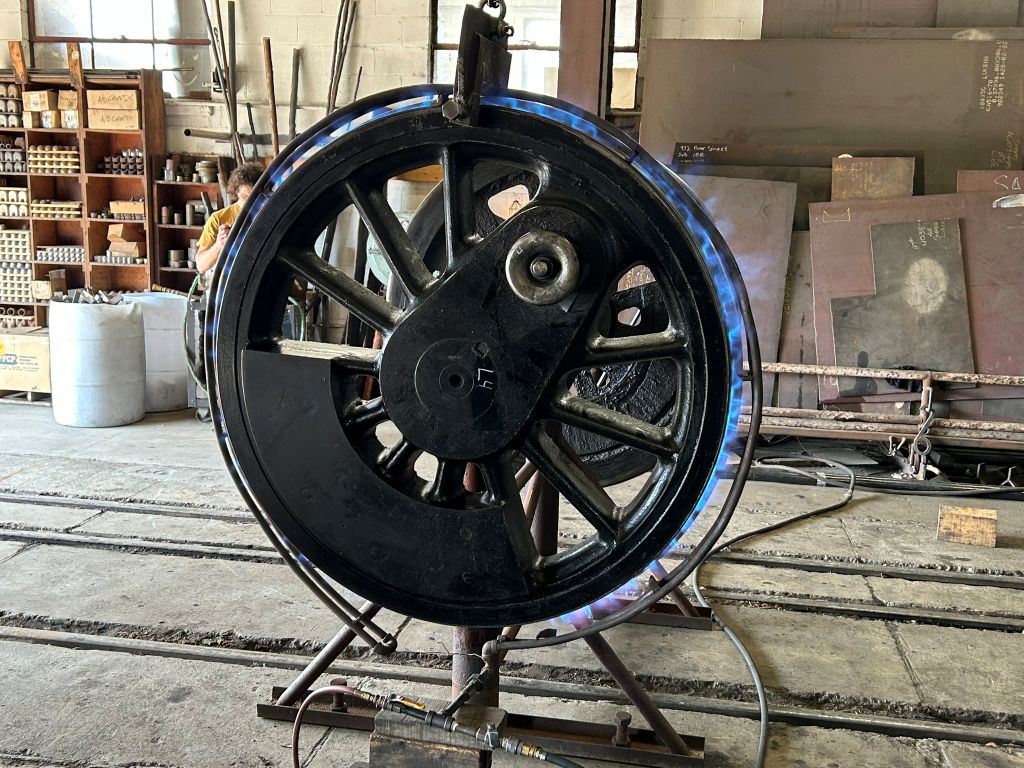

File comment: Quite a bit of work is being done to our N&W M class 475 this summer. One item on the list is the replacement and machining of the L4 tire.
IMG_1363.jpg [ 199.57 KiB | Viewed 2432 times ]

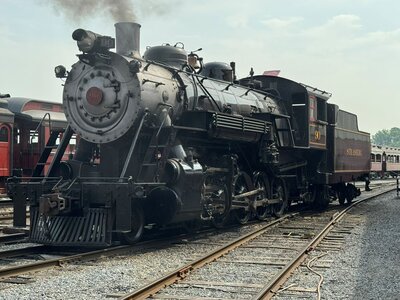

File comment: In April our own #90 returned to service after her 1472 SDI. Our shop crews did an excellent job on her. Quite a bit was done, especially centered around the valves. One engineer commented "I've ran this engine for 35 years and never felt it with that much power."
IMG_1366.jpg [ 172.49 KiB | Viewed 2432 times ]
File comment: Southern 722's firebox has been temporarily put into place while drilling for the mud ring rivets takes place and proper alignment is checked.
IMG_1447.jpg [ 146.32 KiB | Viewed 2432 times ]
File comment: Recently Chesapeake and Ohio 614 was delivered to us as well as this Case 65 Traction engine. 614 is here for a planned rebuild and return to service while the traction engine will be having the boiler and firebox inspected.
IMG_1453.jpg [ 161.58 KiB | Viewed 2432 times ]

_________________

https://mechanical.strasburgrailroad.com
timothy.barger@strasburgrailroad.com
Offline
 Profile

Daylight25
 Post subject: Re: Updates from the Strasburg Rail Road Shops
PostPosted: Fri Jun 20, 2025 10:08 am

Joined: Wed Mar 23, 2022 11:00 pm
Posts: 180
Quite a lot going on in Strasburg. I love all the progress being made
Offline
 Profile

jayrod
 Post subject: Re: Updates from the Strasburg Rail Road Shops
PostPosted: Fri Jun 20, 2025 10:29 am

Joined: Thu Oct 08, 2015 11:54 am
Posts: 1947
Location: New Franklin, OH
Thanks, Tim. Glad to see these shop reports back. These and the 557 group reports are among my favorites here.

_________________
Eric Schlentner
Turner of Wrenches, Drawer of Things

Offline
 Profile

Richard Glueck
 Post subject: Re: Updates from the Strasburg Rail Road Shops
PostPosted: Fri Jun 20, 2025 10:52 am

Joined: Sun Aug 22, 2004 11:26 am
Posts: 4713
Location: Maine
Never a dull moment at the Strasburg, and always something progressive.

_________________
"It's only impossible until it's done." -Nelson Mandela

Offline
 Profile

softwerkslex
 Post subject: Re: Updates from the Strasburg Rail Road Shops
PostPosted: Sat Jun 21, 2025 8:33 am

Joined: Thu Apr 14, 2005 9:34 pm
Posts: 2827
Location: Copenhagen, Denmark
Interesting - you forge instead of turn the threads on staybolts?

_________________
Steven Harrod
Lektor
Danmarks Tekniske Universitet

Offline
 Profile

Dave Lewandoski
 Post subject: Re: Updates from the Strasburg Rail Road Shops
PostPosted: Sat Jun 21, 2025 9:05 am

Joined: Sun Aug 22, 2004 5:58 pm
Posts: 1076
Definatly the Crown Jewel of Preservation. Thanks.
Offline
 Profile

AlcoC420
 Post subject: Re: Updates from the Strasburg Rail Road Shops
PostPosted: Sat Jun 21, 2025 10:18 am

Joined: Wed Dec 15, 2010 8:17 pm
Posts: 269
softwerkslex wrote:
Interesting - you forge instead of turn the threads on staybolts?


They are NOT forging the threads, they are forging the rounded head of the bolt.
