CLIMAX A-313

WESIII · **Posted:** Tue Nov 11, 2025 8:15 pm

Four (4) views of A-313 to date (11/2025). The line drawing illustrates the degree to which the original roof arcs have bent under the weight of time, the roof and snow & ice. If the original roof arches are used the Side Stakes will have to be lengthened to clear the Sanding Rod & Lever. TBD.

Attachment:

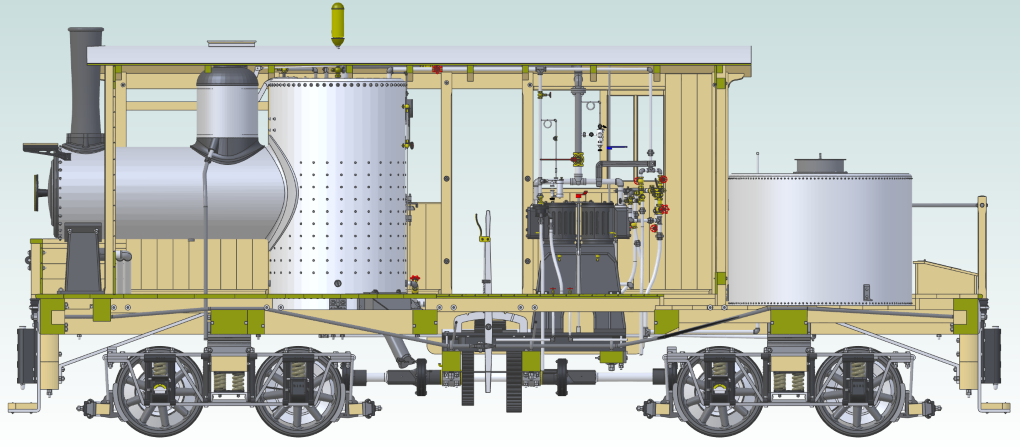

A-313 Cut Away Left 11-25 Reduced.PNG [ 252.91 KiB | Viewed 47239 times ]

Attachment:

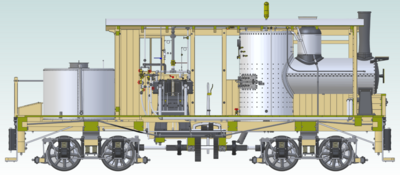

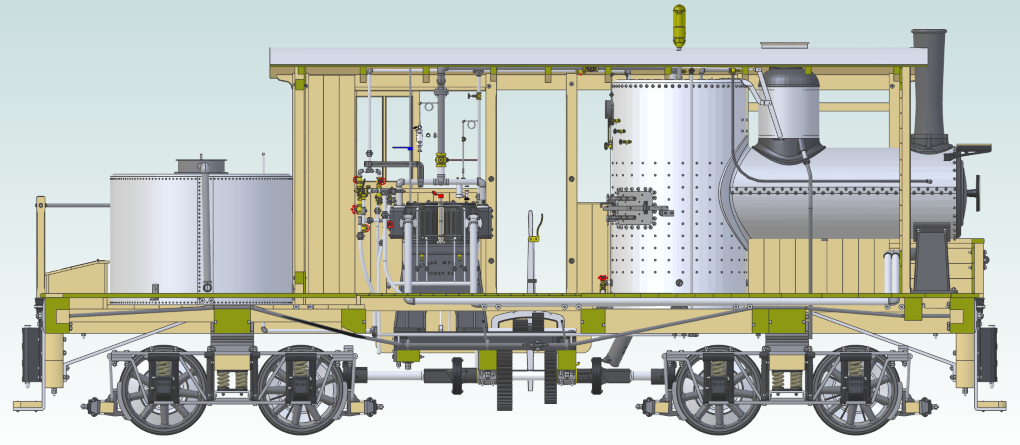

A-313 Cut Away Right 11-25 Reduced.PNG [ 262.45 KiB | Viewed 47239 times ]

Attachment:

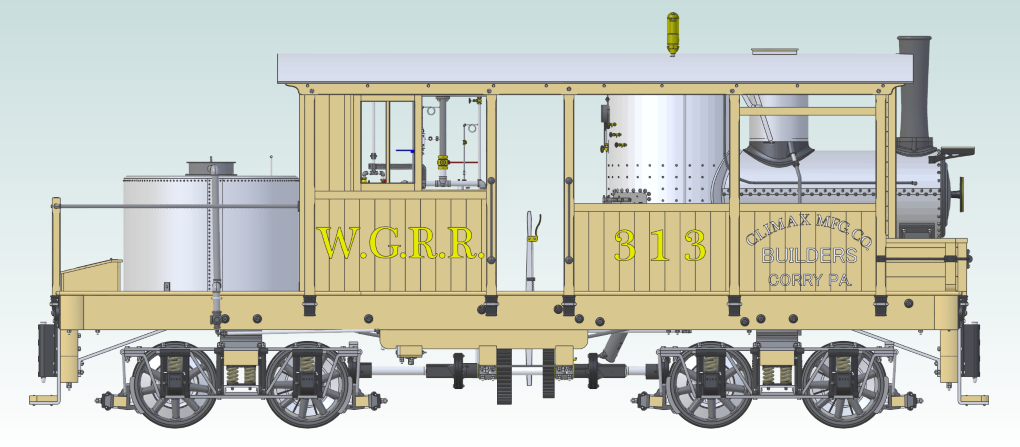

A-313 Right Elevation 11-25 Reduced.PNG [ 210.6 KiB | Viewed 47239 times ]

Attachment:

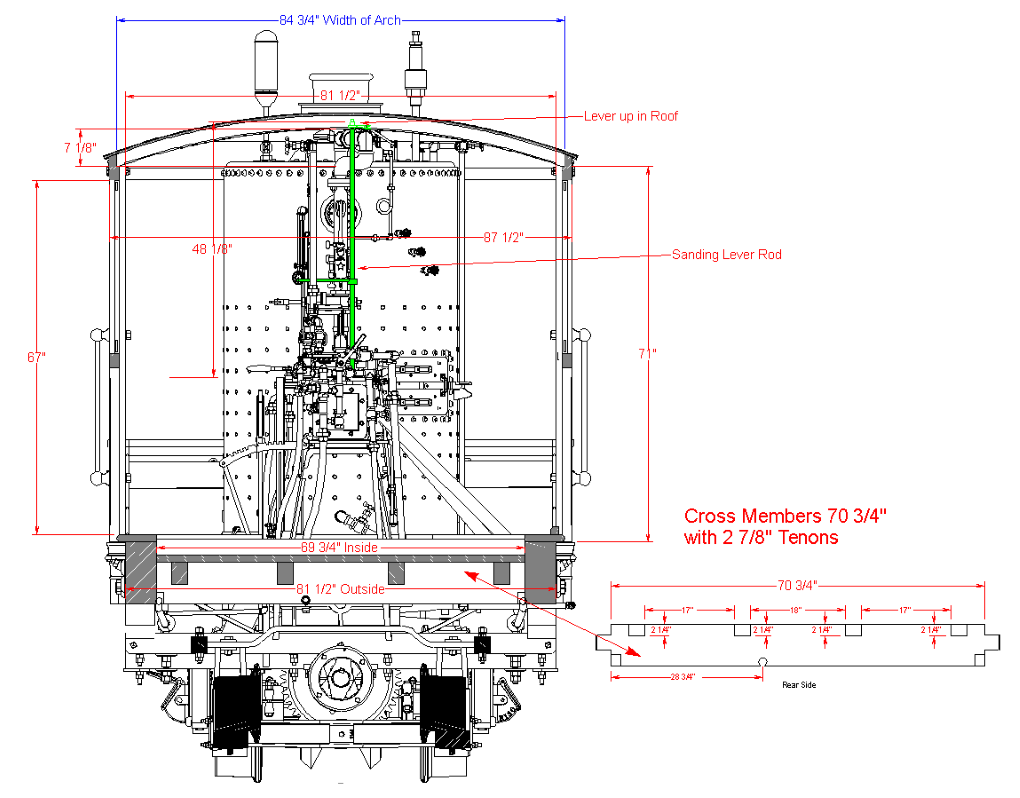

A-313 Section Reduced.PNG [ 176.56 KiB | Viewed 47239 times ]

o anderson · **Posted:** Thu Nov 13, 2025 11:36 pm

Try Option C and create a steam tube to allow the original arch to fit, and then re-bend it to the arch it should have and place within a clamped structure until it dries. Should work just like a trolley roof board.
Good Luck!

o anderson · **Posted:** Thu Nov 13, 2025 11:38 pm

And that was my 7th time trying to post to the forum for that message!

WESIII · **Posted:** Sat Nov 15, 2025 1:33 am

I will pass that along. I have raised the arches 1 3/8" – total 8 ½” and that appears to be close to what was based on another detail.

My 11th attempt to respond.

WESIII · **Posted:** Wed Apr 29, 2026 1:32 am

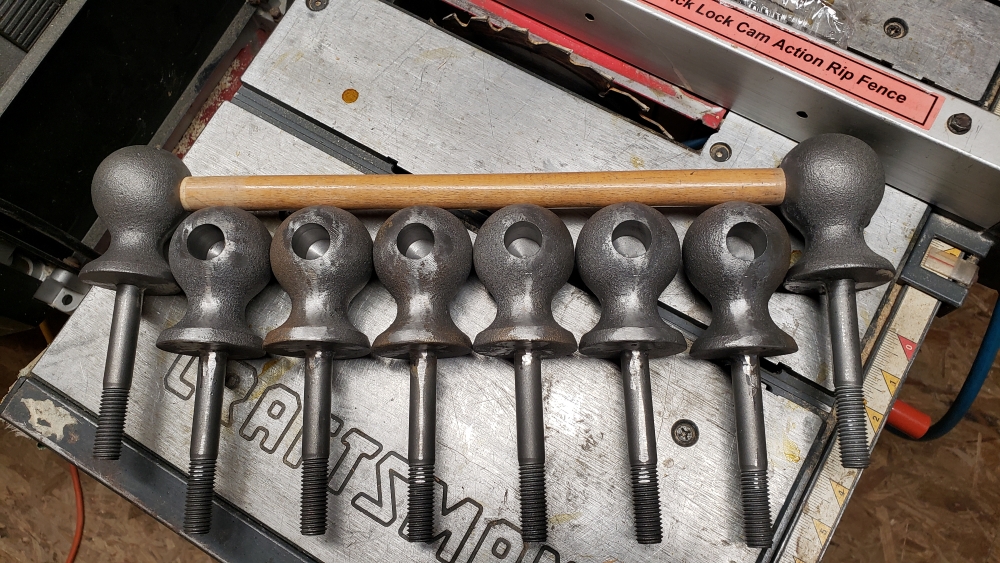

New Gangway stanchions for A-313. A-313's were missing. One of the few things not recovered. Copied from those on A-804.

Attachment:

Gangway Stanchions New Reduced.jpg [ 568.22 KiB | Viewed 23019 times ]

Randy Gustafson · **Posted:** Wed Apr 29, 2026 1:32 pm

For anyone following this that wants to see the 'real stuff'..... Open house at Corry on May 9 (national train day) for the project:

https://www.facebook.com/10005736082364 ... 005398480/
